Field Testing Guide
IV Curve Tracing vs. Isc Measurement
Two approaches to evaluating PV string performance — what each method tells you, where it falls short, and how to choose the right one for the task at hand.

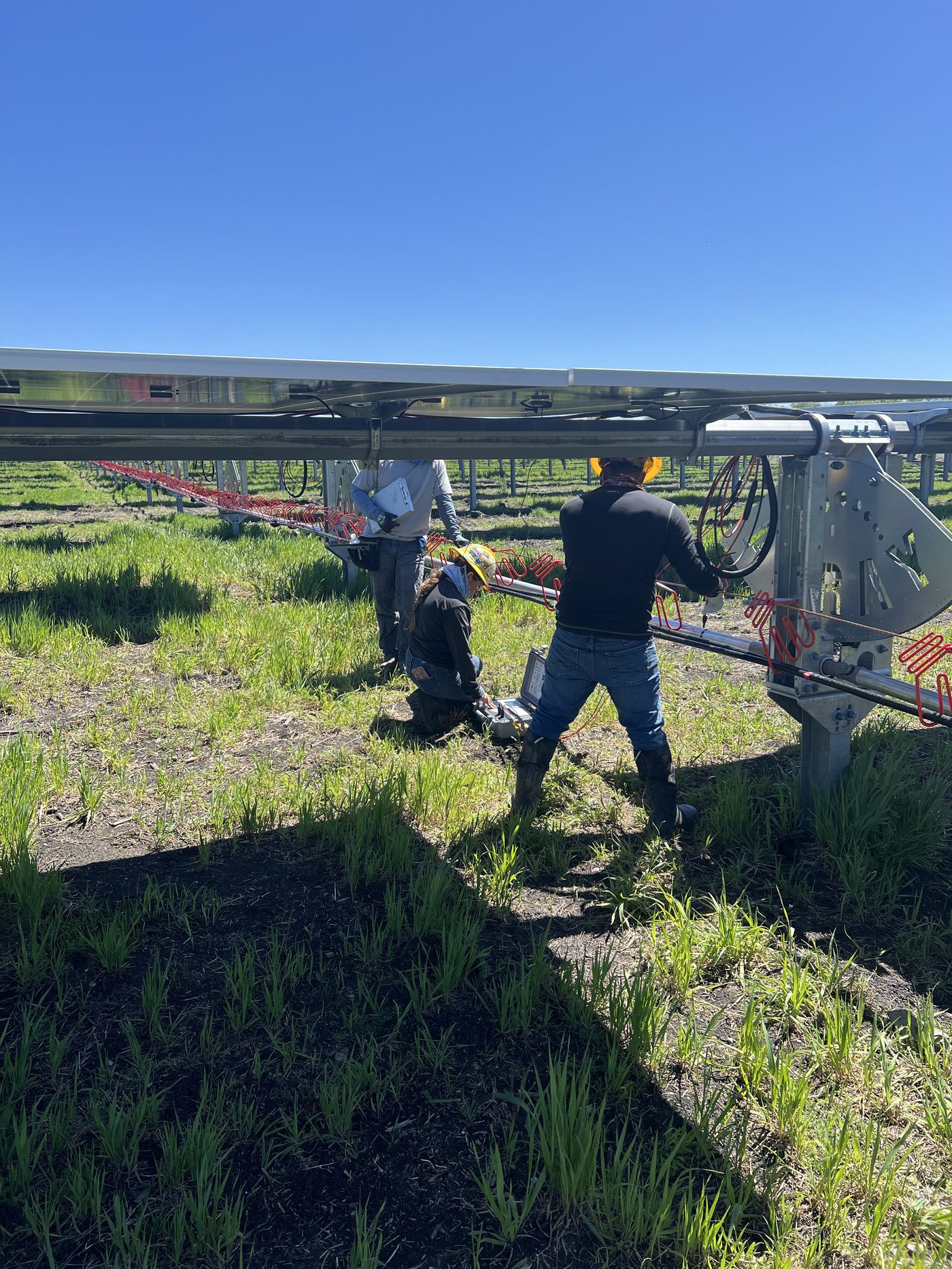

When testing a PV string in the field, you are almost always choosing between two primary electrical measurement approaches: IV curve tracing for full characterisation, or short-circuit current (Isc) measurement for rapid screening. Both are widely used and both have genuine value — but they answer different questions, suit different workflows, and require different instruments and time commitments.
Understanding the practical difference between the two is one of the most useful things a PV technician or engineer can internalise. This guide covers what each method actually measures, what it can and cannot tell you, and how to decide which fits the job.
IV curve tracing captures the complete electrical behaviour of a string — every parameter from Isc through to Voc, with Pmax, fill factor, and Vmpp/Impp in between. Isc measurement captures a single point on that curve: short-circuit current. That single point is a powerful proxy for irradiance and a fast indicator of string-level issues, but it cannot tell you what the problem is, only that something may be wrong.
What Each Method Measures
IV Curve Tracing
An IV curve tracer sweeps the string from short-circuit to open-circuit conditions, sampling current and voltage at many points along the way. The result is a complete current-voltage characteristic curve from which all key performance parameters can be derived: Isc, Voc, Pmax, fill factor (FF), Vmpp, and Impp. When combined with irradiance and temperature measurements, these parameters can be corrected to standard test conditions (STC) and compared directly to the module nameplate datasheet — making this the only field method that allows a definitive statement about whether a string is performing to specification.
IV curve shape carries additional diagnostic information beyond the headline numbers. A flattened curve may indicate shading or bypass diode conduction. A reduced fill factor with normal Isc and Voc points to elevated series resistance — typically connector degradation, poor terminations, or oxidised contacts. A stepped curve suggests partial shading or mismatch. Voc suppression combined with low fill factor can indicate cell cracking. None of these distinctions are visible in a single Isc reading.
Isc Measurement
Short-circuit current is the current produced by a string when its output is shorted — the leftmost point on the IV curve. Because Isc is almost linearly proportional to irradiance and relatively insensitive to temperature, it serves as a direct proxy for the effective irradiance seen by the string. A string producing lower Isc than its neighbours under the same irradiance is seeing less light, producing less current, or both — flagging it for investigation.
Isc measurement is fast. Once instrumentation is set up, a technician can sweep through many strings in the time it would take to trace a single IV curve. This makes Isc screening the practical first step in any O&M visit where coverage matters more than depth — identify the outliers, then commit the IV tracer where it is needed most.
Side-by-Side Comparison
| IV Curve Tracing | Isc Measurement | |
|---|---|---|
| What you measure | Complete IV curve: Isc, Voc, Pmax, FF, Vmpp, Impp | Short-circuit current only |
| Typical instruments | Dedicated IV curve tracer (e.g. Seaward PV200, Emazys Z300 HE, Amprobe SOLAR-600) | DC clamp ammeter or IV tracer set to the Isc point |
| Irradiance sensor needed | Yes — for STC correction | Yes — for STC correction and string-to-string comparison |
| Temperature sensor needed | Yes — for STC correction | Recommended — Isc has a small positive temperature coefficient (~0.03–0.06%/°C for c-Si) |
| STC correction possible | Yes — all parameters correctable per IEC 60891 | Yes — Isc correctable to STC irradiance and temperature |
| Time per string | 15–30 minutes (setup, stabilisation, sweep, documentation) | 2–5 minutes once sensors are in place |
| Detects | Underperformance, shading, bypass diode issues, series resistance, cell degradation, mismatch, fill factor loss | Current underperformance relative to fleet average; soiling, shading, and string-level degradation as proxies |
| Does not detect | Fleet-wide trends quickly — time per string limits coverage | Cause of underperformance; fill factor degradation; bypass diode conduction; voltage-specific faults |
| Suitable for | Acceptance testing, capacity tests, warranty claims, full module characterisation, fault diagnosis | Routine O&M screening, rapid survey of many strings, flagging strings for IV follow-up |
| Output defensibility | High — quantitative, comparable to nameplate, standard-correctable | Medium — relative comparisons are reliable; absolute performance statements require care |
Pros and Cons
IV Curve Tracing
Complete picture
- Captures all key electrical parameters in a single sweep
- Enables direct comparison to module nameplate at STC
- Curve shape reveals fault type, not just fault presence
- Detects series resistance, fill factor degradation, bypass diode issues
- Required for acceptance testing and warranty documentation
- Results are quantitative and legally defensible
Time and cost constraints
- Significantly slower than Isc — limits total string coverage per visit
- Requires a dedicated IV tracer — higher equipment cost
- Setup and stabilisation time required per string
- String must be isolated for measurement
- Overkill for routine O&M screening across large arrays
Isc Measurement
Speed and coverage
- Very fast — 2–5 minutes per string once sensors are deployed
- Enables full-array sweeps in a single site visit
- Excellent for identifying outlier strings quickly
- Can be done with a DC clamp ammeter — lower instrument cost
- Proportional to irradiance — reliable cross-string comparisons
- Scalable: one technician can cover many combiner boxes per day
Diagnostic depth
- Cannot distinguish between fault types — only flags anomalies
- Does not capture Voc, Pmax, fill factor, or IV curve shape
- A clamp meter on a live string measures operating current (Imp), not true Isc
- Cannot confirm whether a string meets nameplate specification
- Voltage-related faults (e.g. partial open circuits) may not appear in Isc
- Not suitable for warranty claims or formal capacity testing
When to Use Each Method
Speed and coverage matter
- Routine O&M site visits with many strings to survey
- Initial screening before committing to IV tracing
- Identifying which strings need closer attention
- Comparing string performance across a large array
- Budget or time constraints limit full IV tracing
- Monitoring for soiling or shading pattern changes over time
Detail and defensibility matter
- Acceptance testing or formal capacity tests
- Warranty claims or performance disputes
- Investigating a specific underperforming string flagged by Isc screening
- Characterising fill factor degradation or bypass diode issues
- Performance reporting with contractual implications
- Diagnosing the cause — not just the location — of underperformance
In practice, the two methods work well together. Run Isc sweeps across all strings to identify outliers, then deploy the IV tracer on flagged strings to understand the nature of the underperformance. Isc screening tells you where the problem is; IV tracing tells you what it is.
A Note on Clamp Meters and True Isc
A clamp meter on a live string connected to an operating inverter measures operating current (Imp or Iop), not short-circuit current. These are not the same value. Isc is typically 2–5% higher than Imp for crystalline silicon modules. For rough string-to-string comparisons under identical irradiance conditions, the distinction may be acceptable for screening purposes. However, if you are correcting a reading to STC and comparing it to nameplate Isc, you need true short-circuit current — which requires isolating the string and short-circuiting it through the measurement instrument.
Some IV tracers can measure Isc directly at the Isc point of the curve without capturing the full sweep. This gives you a faster true-Isc reading than a full IV trace, and is a useful middle ground when speed matters but you still need a correctable, nameplate-comparable current value.
If you are using a clamp meter for O&M screening and not a dedicated Isc instrument, be consistent. Cross-string comparisons are valid if all strings are measured the same way under the same conditions. Absolute comparisons to nameplate Isc require true short-circuit current through an isolating instrument.
Environmental Measurement: Required for Both
Both IV curve tracing and Isc measurement require concurrent irradiance and temperature measurement to produce results that are correctable to STC and comparable across strings or site visits. A snapshot current or power reading without environmental context is valid for relative cross-string comparisons on the same day — but it cannot support an absolute performance claim or a comparison to a previous measurement taken under different conditions.
At minimum, you need:
| Measurement | Sensor | Required For |
|---|---|---|
| Plane-of-array (POA) irradiance | Reference cell or pyranometer mounted coplanar with modules | STC irradiance correction for both IV and Isc |
| Module temperature | PT100/PT1000 RTD or thermocouple on module rear surface | STC temperature correction for IV curve; recommended for Isc |
| Ambient temperature | PT100/PT1000 RTD in free air (shaded) | System performance context; useful for reporting |
For sites with bifacial modules, irradiance measurement must also capture rear-side contributions to avoid systematically understating effective irradiance. See the Geff calculation guide for a plain-language explanation of effective irradiance, and the bifacial field testing guide for the full rear irradiance measurement workflow.
The bifacial field testing guide covers both Isc and IV curve workflows with step-by-step rear irradiance measurement, Geff calculation, and STC correction for bifacial strings.
